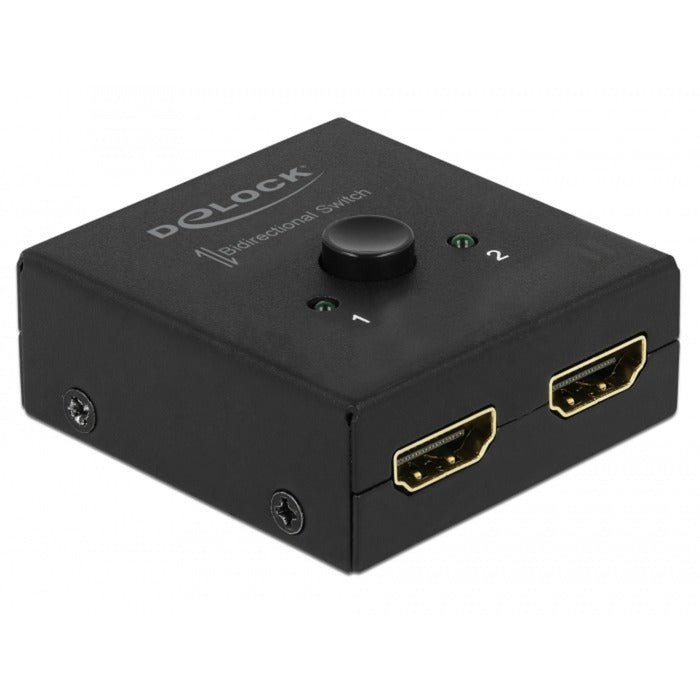

Delock HDMI switch 2 - 1 bidirectional 4k 60 Hz (black)

HDMI™ Switch 2-in-1 / 1-in-2 – Bidirectional – HDMI™ 2.0 – 4K@60Hz This Delock HDMI™ switch is a manual bidirectional HDMI switch. The device supports two different use cases, allowing flexible connection of HDMI sources and displays with one compact device. Application 1 – 2× HDMI source to 1× HDMI display In this configuration, up to two HDMI sources can be connected to one HDMI display, such as a television, monitor, or projector. A button press determines which connected device is shown on the display. Application 2 – 1× HDMI source to 2× HDMI displays In this configuration, one HDMI source can be connected to up to two HDMI displays. The button on the device selects which display shows the signal. Simultaneous display on both screens is not possible. HDMI Connections The HDMI™ switch features HDMI-A female connectors that function as either input or output depending on the chosen application. The switching direction is determined by the connected configuration. Image and Video Support Supports image resolutions up to 3840 × 2160 @ 60 Hz (4K UHD). This requires an HDMI™ 2.0 signal level with a maximum bandwidth of 18 Gbit/s. Lower resolutions are automatically supported depending on the source and display. Color and Image Formats Supports standard HDMI color formats. The video signal is forwarded unchanged without image processing by the switch. HDR Support Supports HDR signal pass-through. The HDR signal is forwarded directly from source to display without processing by the device. Switching Method HDMI™ port selection is done via a manual push button on the device. Automatic switching or remote control is not supported. Power Supply The HDMI™ switch operates without external power. The device is powered via the HDMI signal from the connected equipment. Design The housing is made of metal for added robustness and durability. Its compact size makes the device suitable for both fixed and mobile setups. Specifications • Brand: Delock • Product type: HDMI™ Switch (bidirectional) • HDMI version: HDMI™ 2.0 • Configuration: 2× HDMI → 1× HDMI or 1× HDMI → 2× HDMI • Connectors: HDMI-A female • Max. resolution: 3840 × 2160 @ 60 Hz (4K UHD) • Max. bandwidth: 18 Gbit/s • HDR: yes (pass-through) • Switching method: manual button • Power supply: via HDMI (no external power) • Housing material: metal • Dimensions: approx. 53 × 50 × 20 mm Explanation of terms used • Bidirectional HDMI switch: HDMI switch that can function as both a 2-to-1 switch and a 1-to-2 switch, depending on the connected configuration. • HDMI™ 2.0: HDMI standard with a maximum bandwidth of 18 Gbit/s, required for 4K@60Hz. • 4K UHD: Image resolution of 3840 × 2160 pixels. • 4K@60Hz: 4K resolution at 60 frames per second. • HDR (pass-through): Unmodified transmission of HDR video signals from source to display. • HDMI-A: Standard 19-pin HDMI connector. • Manual switching: Switching between HDMI ports via a physical button on the device. • Metal housing: Housing made of metal for added robustness and heat dissipation. Ask a product question
